1500W
kaihuan

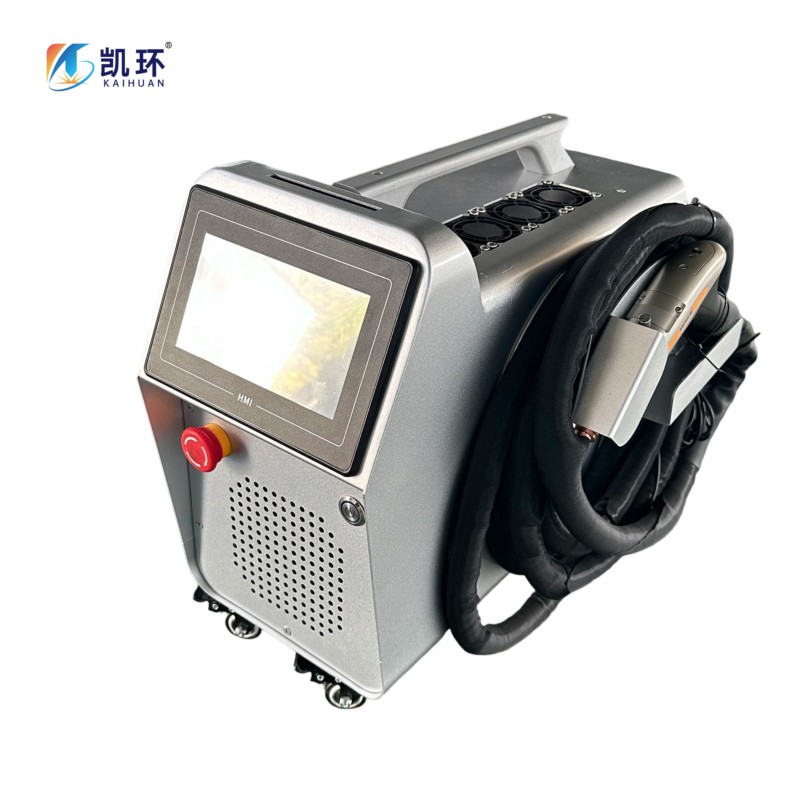

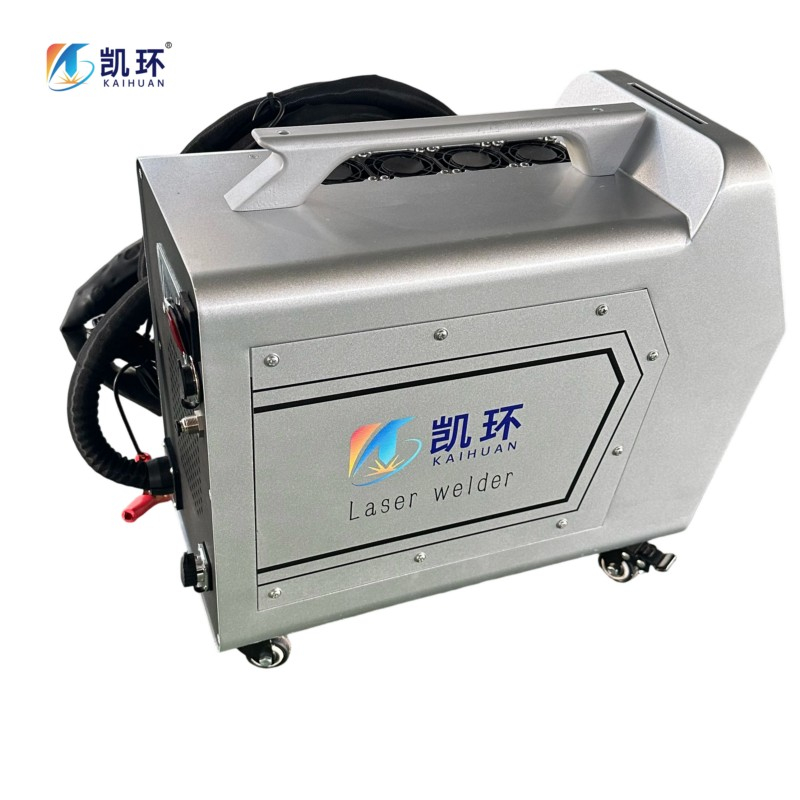

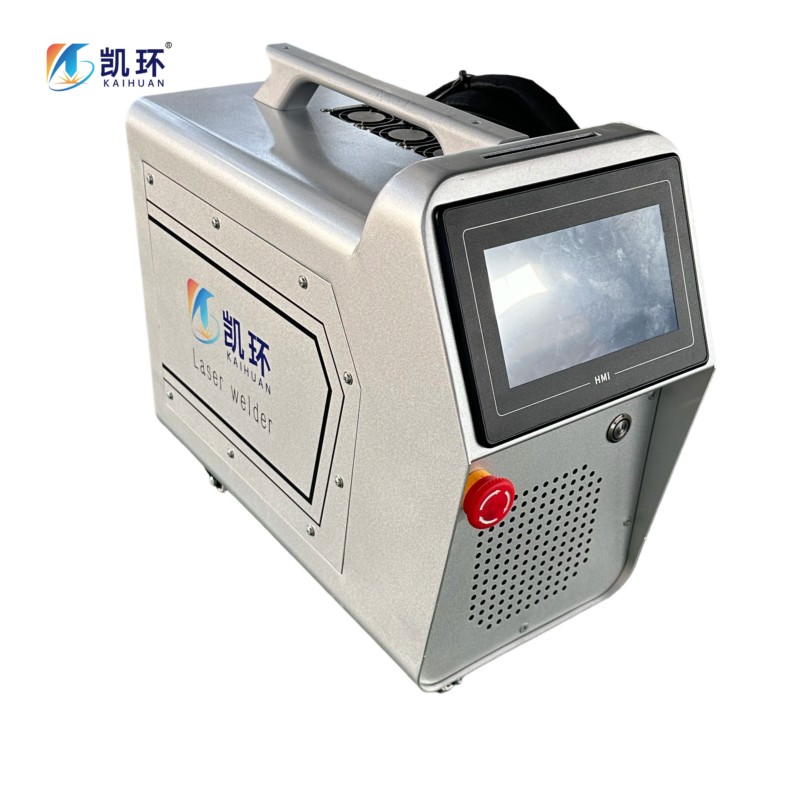

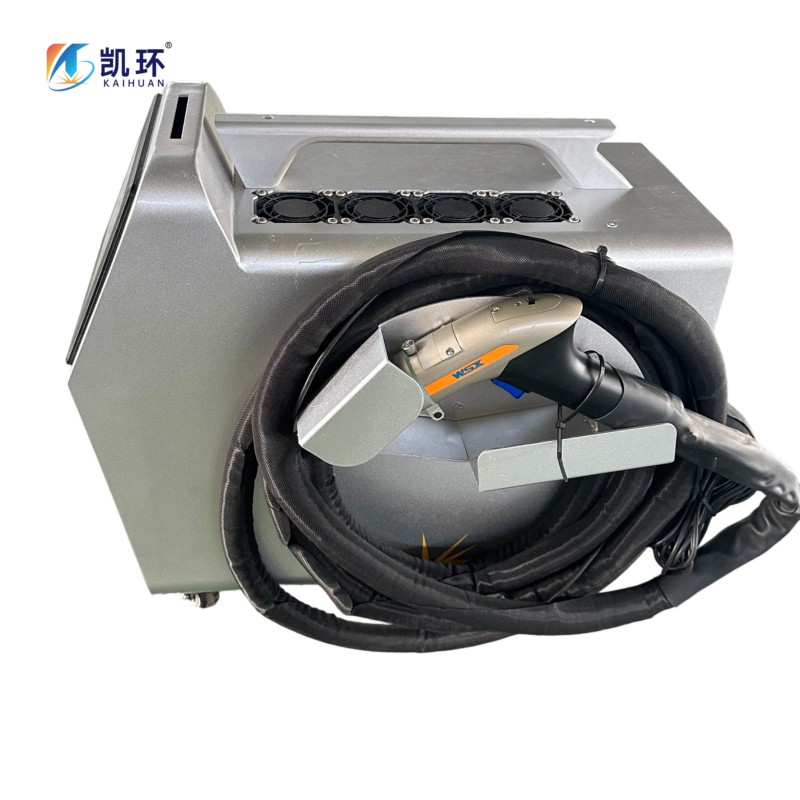

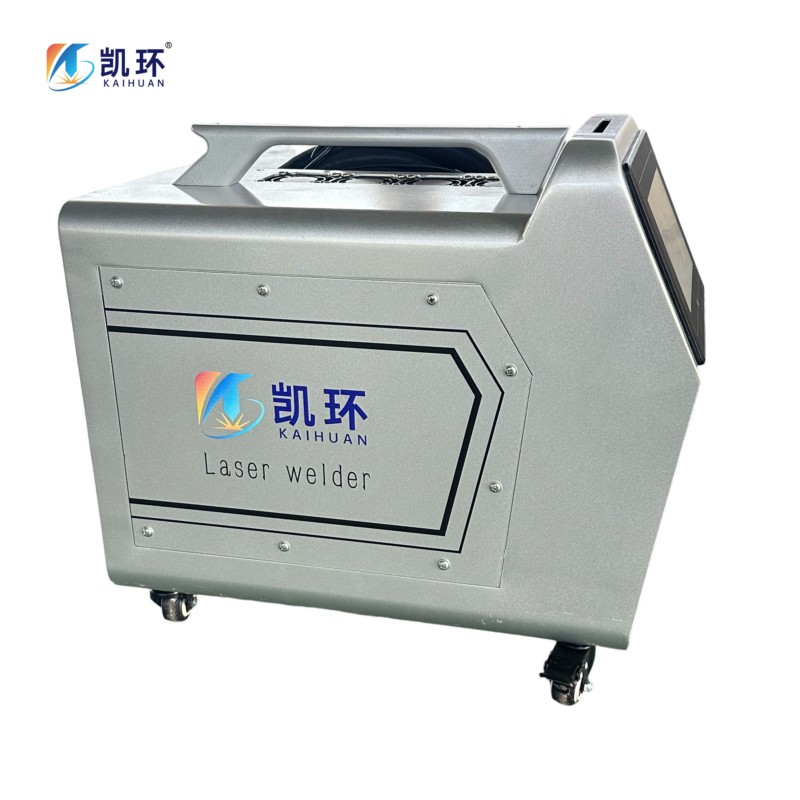

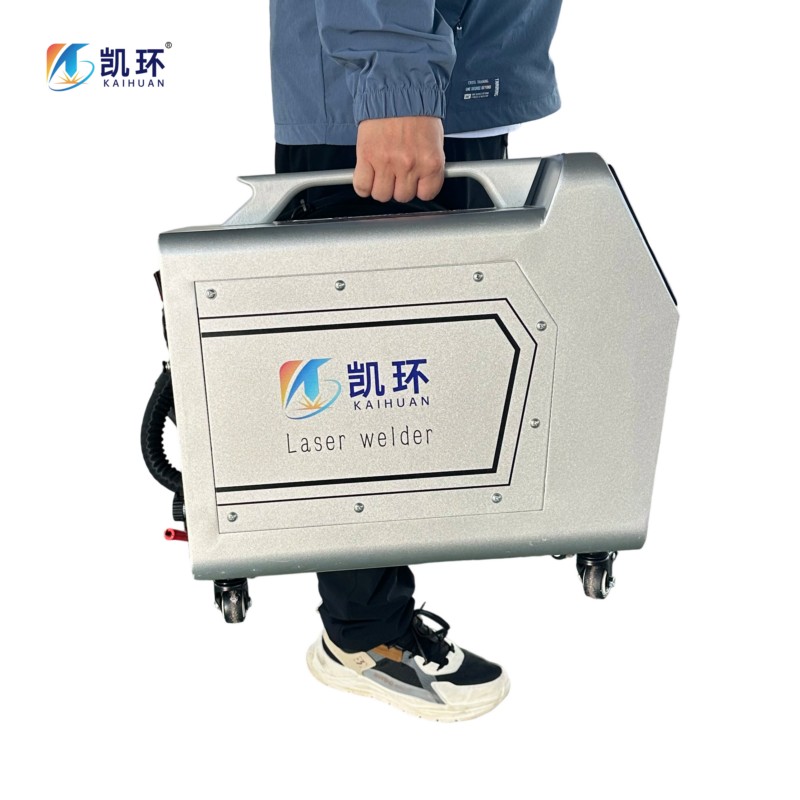

Kaihuan Company Main Produce: 800w Air-cooled Laser Welding Machine
(Please contact us Get Free Quote Now. )
Kailin Laser exclusively adopts the domestically advanced "Lightning Series" fiber laser (800W–3000W), which features high stability, high energy density, and a compact size. It delivers excellent welding performance with high beam quality, achieving a copper and aluminum welding qualification rate of over 98%. The equipment is portable and efficient, with a small footprint, low transportation costs, and 30%–50% higher operational efficiency. Its anti-reflection design makes it especially suitable for processing highly reflective materials. Widely used in traditional manufacturing, aerospace, shipbuilding, precision machinery, railway facilities, and other fields (e.g., Beijing Aerospace Base, Henan railway project).
Main Parameters Of The Equipment
| Interface Type | QBH |
| Power Bracket | 1%-100% |
| Laser Wave Length | 1080+ 10nm |
| Focal Focus | 150mm |
| Input Power Supply | AC110/220V/50HZ/60HZ |
| Welding Penetration Depth | 0.3-2.5mm |
| Proportional Valve Gasad Justment | 0-100% |
| Spot Diameter(Mm) | (0.2-5)mm |
| Grip Weight (Kg) | 500g |
| Welding Speed (Mm/S) | 0-150 |
| Welding Requirements(Mm) | ≤ 1.5mm |
| Outline Dimension(Mm) | 442mm*230mm*394mm |
| Net Weight(Kg) | 18.8kg |
| Gross Equipment Weight(Kg) | 30kg |
| Protective Lenses | D20*T3 |
| Cooling-Down Method | forced air cooling |
| Use Of Gasfiber Length (M) | Argon or nitrogen |
| Fiber Length (M) | 5m |
Main Configuration Of Equipment
| Name | specifications and models | quantity | Brand ground |
| Hull | KH-30 | 1 | Kai Ring |
| Laser | 800w | 1 | Kai Ring |
| System | Kai Ring | 1 | Kai Ring |
| Welding torch | Wind cooling intelligent temperature control | 1 | Kai Ring |
| Intake-Tube | 5 metres | 1 | |
| Power Line | 5 metres | 1 | |
| Electricrelay | Schneider | 1set | France |
| Electroma Gnetic Valve | lark | 1set | Shenzhen |
| Switch | ljara | 1set | China |
| Autom Atic Wire Feedei | Multi-functional intelligent wire feeder | 1set | Kai Ring |
Kailin Laser exclusively adopts the domestic advanced "Lightning Series" fiber laser (800W–3000W).
It features high stability, high energy density, and a compact size.
It delivers excellent welding quality with a beam quality that achieves over 98% pass rate for copper and aluminum.
The equipment improves operational efficiency by 30%–50% and has low transportation costs due to its small footprint.
Its anti-reflection design makes it especially suitable for processing highly reflective materials.
It is widely used in aerospace, shipbuilding, precision machinery, railway facilities, and other fields.
Kailin Laser is widely used in traditional manufacturing, aerospace, shipbuilding, precision machinery, railway facilities, and other fields, with proven success in key projects such as the Beijing Aerospace Base and the Henan railway project.
Kailin Laser is suitable for processing a wide range of materials, including highly reflective ones such as copper and aluminum, as well as common metals like stainless steel and galvanized sheets.
